930966517 | Hirschmann Automation and Control

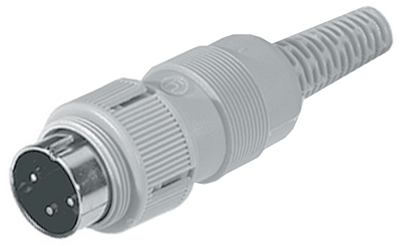

Plug, 6 pole, solder cup, screw locking, straight, 930966517
Not suitable for new designs - Last time buy manufacturer: 06.30.2024
Unit Price (€ / pc.)
5.117 € *
Available: 53 pcs.
DIN audio connector, plastic, type Hirschmann MA.
To EN 60130-09 and DIN 45322, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass. Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C. type, version, housing color.
DIN audio plugs with screw lock, type MAS.
Straight plug with screw lock. Housing material: PE.
Type: MAS 6100, 6-pole, gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.34 mm² | |
| Cable diameter | 5.5 mm | |
| Shell Material | plastic | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Assembly | cable assembly | |
| Contact connection | solder cup | |
| Version | DIN plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
