930953517 | Hirschmann Automation and Control

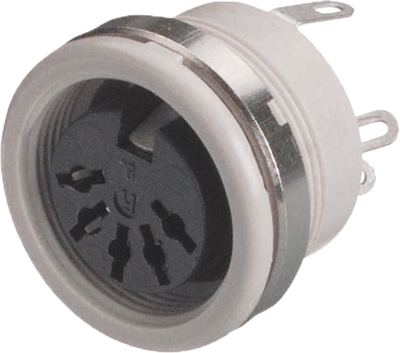

Panel socket, 5 pole, solder cup, screw locking, straight, 930953517
Not suitable for new designs - Last time buy manufacturer: 06.30.2024
Unit Price (€ / pc.)
6.8782 € *
Available: 514 pcs.
Total Price:
6.88 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8782 €
10 pcs.
6.0333 €
100 pcs.
5.3074 €
250 pcs.
5.1170 €
1000 pcs.
4.7600 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN audio connector, plastic, type Hirschmann MA.
To EN 60130-09 and DIN 41524, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass.Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.
DIN audio panel jacks, with screw lock, type MAB.
Panel jack with screw lock. Housing material: PE.
Type: MAB 5100 S, 5 - pole, gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | tin-plated | |
| Shell Material | plastic | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Additional parts | equipped | |
| Version | DIN panel socket | |
| Cable cross-section | 0.34 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
