930152517 | Hirschmann Automation and Control

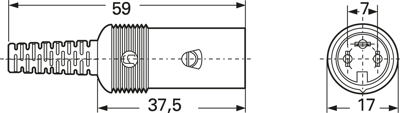

Jack, 6 pole, solder cup, straight, 930152517

Order No.: 70F390
EAN: 4099889734614
MPN:
930152517
MAK 60
Series: MAK
930152517 Hirschmann Automation and Control Other Circular Connectors Image 1
930152517 Hirschmann Automation and Control Other Circular Connectors Image 2
Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2024

Unit Price (€ / pc.)
4.2007 € *
Available: 47 pcs.
Total Price:
4.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2007 €

DIN audio connector, plastic, type Hirschmann MA.

To EN 60130-09 and DIN 45322, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass. Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.

DIN audio jacks, type MAK.

Straight jack with insulated grip, without screw lock; Housing material: PE.

Type: MAK 60, version F, gray

Technical specifications
Filter Property Value
Contact connection solder cup
Shell Material plastic
Cable diameter 5.5 mm
Orientation straight
Assembly cable assembly
Additional parts equipped
Version DIN jack
Pin number 6 pole
contact surface tin-plated
Cable cross-section 0.34 mm²
Logistics
Property Value
Country of origin HU
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
