930149517 | Hirschmann Automation and Control

Jack, 3 pole, solder cup, straight, 930149517

Order No.: 70F360
EAN: 4099889733846
MPN:
930149517
MAK 30 S
Series: MAK
930149517 Hirschmann Automation and Control Other Circular Connectors Image 1
930149517 Hirschmann Automation and Control Other Circular Connectors Image 2
930149517 Hirschmann Automation and Control Other Circular Connectors Image 3
Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2024

Unit Price (€ / pc.)
3.4748 € *
Available: 94 pcs.
Total Price:
3.47 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4748 €

DIN audio connector, plastic, type Hirschmann MA.

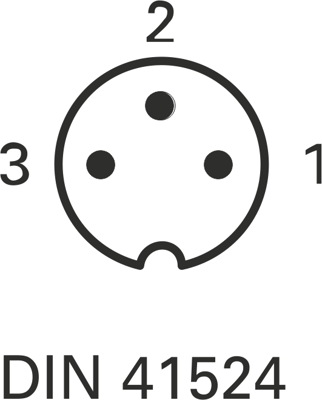

To EN 60130-09 and DIN 41524, solder terminals for conductors to max. 0.34 mm²; Contacts: tinned brass. Contact block: PA 66 to UL 94 V-2. Rated voltage: 34 V AC/DC. Rated current: 4.0 A. Degree of protection (IEC 60529): IP 30. Operating temperatures: - 20 to +60 °C.

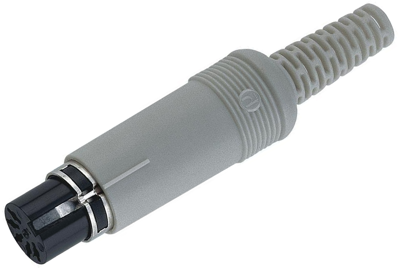

DIN audio jacks, type MAK.

Straight jack with insulated grip, without screw lock; Housing material: PE.

Type: MAK 30 S, gray

Technical specifications
Filter Property Value
Pin number 3 pole
Shell Material plastic
Cable cross-section 0.34 mm²
Version DIN jack
Assembly cable assembly
Additional parts equipped
contact surface tin-plated
Cable diameter 5.5 mm
Orientation straight
Contact connection solder cup
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
