934888123 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 300 V, 0.25-1.5 mm², 934888123

Order No.: 51F252
EAN: 4099889744590
MPN:
934888123
GDM21AN-A0U-10F
Series: GDM

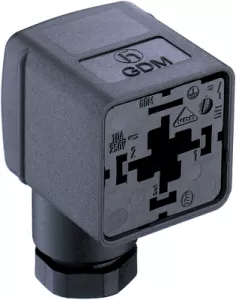

934888123 Hirschmann Automation and Control DIN Valve Connectors Image 1

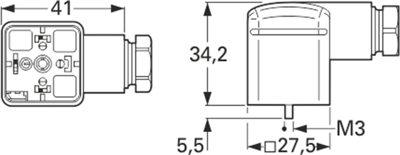

934888123 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.6303 €

Valve connector, GDM21AN-A0U-10F,Hirschmann Automation and Control

2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.

Cable diameters from 4.5 to 10 mm, screw termination up to max. 1.5 mm². Color: black. Rated voltage/current: 250 V AC/DC/16 A. Certifications: VDE, SEV. Operating temperatures: - 40 to +125 °C.

Type: GDM21AN-A0U-10F, 2-pole + PE, PG11 with strain relief.

Technical specifications
Filter Property Value
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole + PE
Rated voltage 300 V
Degree of protection (IP) IP65/IP67
Wiring without circuit
LED display No
Type of locking central screw
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
