934888112 | Hirschmann Automation and Control

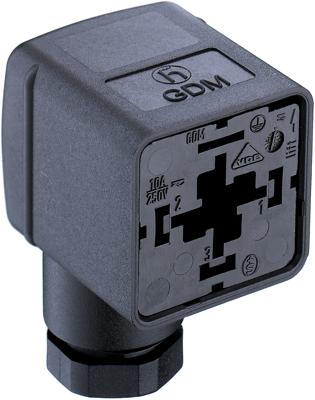

Valve connector, DIN shape A, 2 pole + PE, 250 V, 0.25-1.5 mm², 934888112

Order No.: 51F250
EAN: 4099889744576
MPN:
934888112
GDM21AL-A0U-10F
Series: GDM
934888112 Hirschmann Automation and Control DIN Valve Connectors
Image may differ
Unit Price (€ / pc.)
2.8917 € *
Available: 250 pcs.
Total Price:
2.89 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8917 €
25 pcs.
2.4633 €
100 pcs.
2.2848 €
250 pcs.
2.1658 €
1000 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale

Valve connector, GDM21AL-A0U-10F,Hirschmann Automation and Control

2-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.

with PG 9 termination for cables diameters from 4.5 to 10 mm. Screw terminals for up to max. 1.5 mm². Rated voltage/current: 250 V AC/DC/16 A. Color: black. Certifications: VDE, SEV. Degree of protection: IP65, IP67, IP68. Operating temperatures: - 40 to +125 °C.

strain relief

Type: GDM21AL-A0U-10F, 2-pole + PE.

Technical specifications
Filter Property Value
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole + PE
Rated voltage 250 V
Degree of protection (IP) IP65/IP67
Wiring without circuit
LED display No
Type of locking central screw
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
