934888058 | Hirschmann Automation and Control
Valve connector, DIN shape A, 3 pole + PE, 230 V, 0.25-1.5 mm², 934888058
Unit Price (€ / pc.)
21.3129 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
21.31 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3129 €
10 pcs.
19.8611 €
25 pcs.
18.5997 €
50 pcs.
17.4930 €
*incl. VAT plus shipping costs
Subject to prior sale

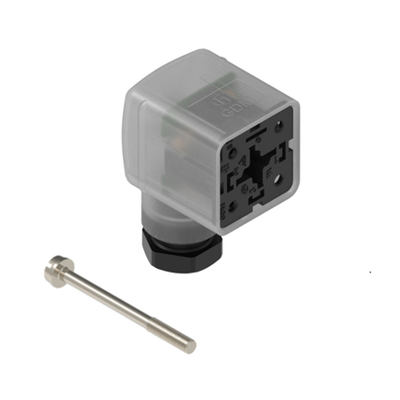

Valve Connector, 934888058, Hirschmann Automation and Control
GDM Standard DIN Standard Field Attachable Connector, Form A, 4-pin (3+1PE, PE across cable outlet), transparent housing, screw type, M20, with red-green LEDs for pressure switch, 230 V AC/DC, 10 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | Yes | |
| Rated voltage | 230 V | |
| Degree of protection (IP) | IP65 | |
| Pin number | 3 pole + PE | |
| Version | DIN shape A | |
| Type of locking | central screw | |
| Cable cross-section | 0.25-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
