934888038 | Hirschmann Automation and Control
Valve connector, DIN shape A, 2 pole + PE, 230 V, 0.25-1.5 mm², 934888038
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.2796 € *
Available: 99 pcs.
Total Price:
15.28 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2796 €
10 pcs.
13.4351 €
50 pcs.
12.5188 €
150 pcs.
11.9714 €
500 pcs.
11.3526 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve connector, GDM2106-V3U-10D,Hirschmann Automation and Control

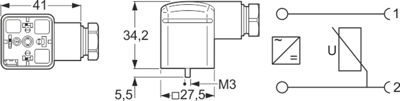

2- or 3-pole with or without PE, contact arrangement to DIN EN 175 301-803-A, pilot PE contact. Leakage and air gaps compliant with DIN EN 60664-1 and VDE 0110/1. Degree of protection (in mated and secured state): IP 65, IP67, optional IP68 or IP69K. Housing and contact block: made of PVC or polyurethane (PUR), vibration-proof lock with screw. Supplied with screws.
With safety circuit (varistor) and bridge rectifier, cable diameters from 4.5 to 10 mm, screw termination up to max. 1.5 mm²; Color: black. Operating voltage/current: 230 V AC/DC/1.0 A. Certifications: VDE, SEV. Operating temperatures: - 25 to +90 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 230 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | bridge rectifier, varistor | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
