934618009 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 250 V, 0.25-1.5 mm², 934618009

Order No.: 50F268
EAN: 4099889742619
MPN:
934618009
GDMF 2016 DRAA
Series: GDMF

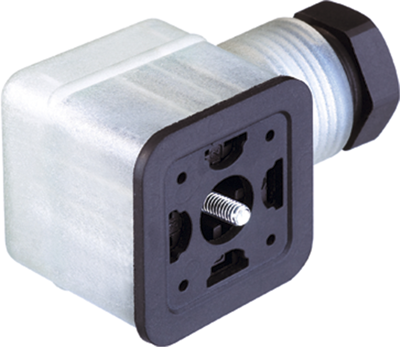

934618009 Hirschmann Automation and Control DIN Valve Connectors Image 1
934618009 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.8306 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.8306 €

Flat cable socket, 934618009    , Fluke

GDMF Flat Line DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, M16; with varistor and yellow LED, 110 V AC/DC, 10 A.

Technical specifications
Filter Property Value
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole + PE
Rated voltage 250 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Property Value
Country of origin HU
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
