934408100 | Hirschmann Automation and Control
Valve connector, DIN shape A, 2 pole + PE, 250 V, 0.25-1.5 mm², 934408100
Unit Price (€ / pc.)
17.4335 € *
Available: 49 pcs.
Total Price:
17.43 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4335 €
10 pcs.
16.0412 €
50 pcs.
14.6013 €
100 pcs.
13.1376 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve connector, GDML 2016 GB C SW,Hirschmann Automation and Control
With protective circuit (varistor and capacitor), for critical EMC applications; Screw terminals: max. 1.5 mm², Screwed cable Gland: M 16, Color: black. Cable diameter: 4.5 to 10 mm. Operating current: 2.0 A (SEV 1.5 A). Operating temperatures: - 40 °C to +90 °C.Operating voltage/current: 250 VUC/2.0 A.
Type: GDML 2016 GBC, 2-pole + PE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 250 V | |
| Degree of protection (IP) | IP65 | |

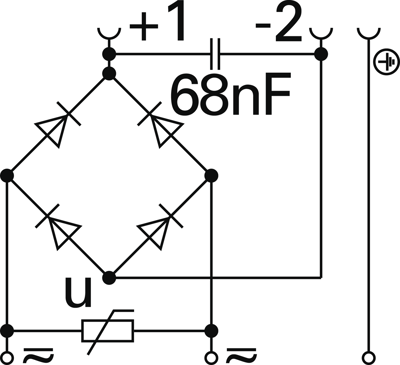

| Wiring | bridge rectifier, varistor, capacitor | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
