933022100 | Hirschmann Automation and Control
Valve connector, DIN shape A, 3 pole + PE, 400 V, 0.25-1.5 mm², 933022100
Unit Price (€ / pc.)
10.5196 € *
Available: 97 pcs.
Total Price:
10.52 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5196 €
10 pcs.
9.2582 €
50 pcs.
8.6156 €
150 pcs.
8.2467 €
500 pcs.
7.8183 €
*incl. VAT plus shipping costs
Subject to prior sale

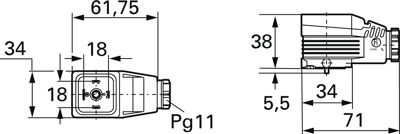

Valve connector, GDME 3011 SW,Hirschmann Automation and Control
With strain relief, translucent lid and Pg 11 cable entry for cable diameters from 4.5 mm to 11 mm; Screw terminals: max. 1.5 mm². Optional electronic inserts for the connector housing are described below. Color: black. Operating temperatures: - 40 °C to +85 °C. Certifications: VDE, SEV, GL.
Type: GDME 3011, 3-pole + PE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 3 pole + PE | |
| Rated voltage | 400 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | without circuit | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
