932967100 | Hirschmann Automation and Control

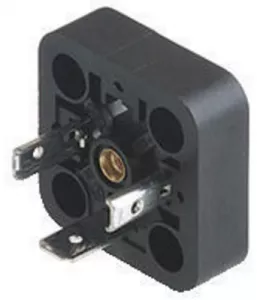

Valve panel plug, DIN shape A, 2 pole + PE, 400 V, 0.08-1.5 mm², 932967100
Unit Price (€ / pc.)
1.8445 € *
Available: 242 pcs.
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
25 pcs.
1.5470 €
100 pcs.
1.4399 €
250 pcs.
1.3685 €
1000 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve panel plug, GSA 2000 N,Hirschmann Automation and Control
Outside mounting on plane surfaces, solder terminals; Certifications: VDE, SEV, UL, CSA. Flat seals are described below at the accessories. Supplied with panel connector with retaining nut, 2 screws M 3 x 10 and 1 screw M 3 x 5.
Type: GSA 2000 N, 2-pole + PE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP65 | |
| Cable cross-section | 0.08-1.5 mm² | |
| Version | DIN shape A | |
| Rated voltage | 400 V | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
