932592500 | Hirschmann Automation and Control

Valve panel plug, DIN shape A, 2 pole + PE, 300 V, 0.08-1.5 mm², 932592500

Order No.: 50F9373
EAN: 4099889743418
MPN:
932592500
GSA 2000 A
Series: GSA

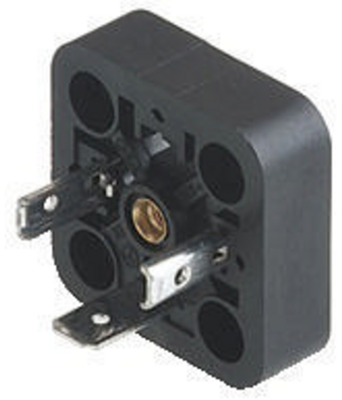

932592500 Hirschmann Automation and Control DIN Valve Connectors Image 1

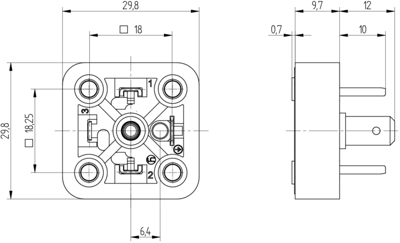

932592500 Hirschmann Automation and Control DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Available: 73 pcs.
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.7136 €
50 pcs.
1.5589 €
100 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

Valve panel plug, GSA 2000 A, Hirschmann Automation and Control Automation and Control

GSA DIN standard receptacle with closed nut and oblong holes for optional front soldering: Form A, 3-pin (2+1PE), UL 1977, solder type (PE screw type); 400 V AC/DC, 16 A.

Technical specifications
Type of locking central screw
LED display No
Degree of protection (IP) IP65
Cable cross-section 0.08-1.5 mm²
Pin number 2 pole + PE
Version DIN shape A
Rated voltage 300 V
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
