932591100 | Hirschmann Automation and Control

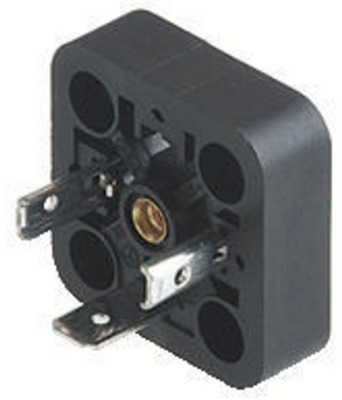

Valve panel plug, DIN shape A, 2 pole + PE, 300 V, 0.08-1.5 mm², 932591100
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 8 Weeks
Valve panel plug, GSA 2000, Hirschmann Automation and Control Automation and Control
GSA DIN standard receptacle with longitudinal slots and oblong holes for optional front soldering: Form A, 3-pin (2+1PE), UL 1977, solder type (PE screw type); 400 V AC/DC, 16 A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | central screw | |
| Pin number | 2 pole + PE | |
| Cable cross-section | 0.08-1.5 mm² | |
| Degree of protection (IP) | IP65 | |
| Rated voltage | 300 V | |
| LED display | No | |
| Version | DIN shape A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
