932547206 | Hirschmann Automation and Control

Valve connector, DIN shape A, 3 pole + PE, 400 V, 0.25-1.5 mm², 932547206

Order No.: 50F9063
EAN: 4099889742985
MPN:
932547206
GDMW 3011 DF grau
Series: GDMW

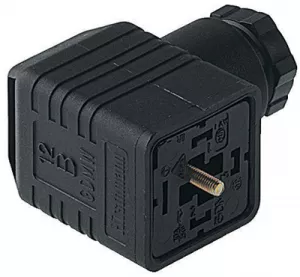

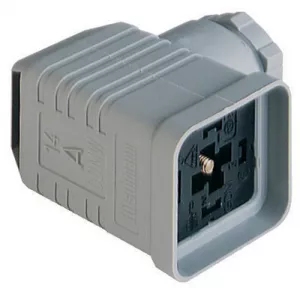

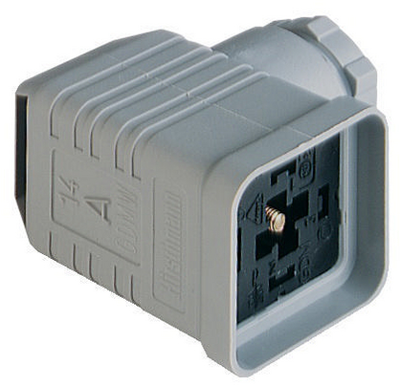

932547206 Hirschmann Automation and Control DIN Valve Connectors Image 1
932547206 Hirschmann Automation and Control DIN Valve Connectors Image 2
932547206 Hirschmann Automation and Control DIN Valve Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.9992 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9992 €

Valve connector, GDMW 3011 DF grau, Hirschmann Automation and Control Automation and Control

GDMW High-Voltage Line DIN Standard Field Attachable Connector: Form A, 4-pin (3+1PE; PE across cable outlet), grey housing, screw type, PG11; without circuitry, 400 V AC/DC, 16 A.

Technical specifications
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole + PE
Rated voltage 400 V
Degree of protection (IP) IP65
Wiring without circuit
LED display No
Type of locking central screw
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
