931965100 | Hirschmann Automation and Control

Valve connector, DIN shape A, 2 pole + PE, 250 V, 0.25-1.5 mm², 931965100

Order No.: 51F300
EAN: 4099889744729
MPN:
931965100
GDM 2009 SW
Series: GDM
931965100 Hirschmann Automation and Control DIN Valve Connectors
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
2.5466 € *
Available: 10 pcs.
Total Price:
2.55 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5466 €
10 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

Valve connector, GDM 2009 SW,Hirschmann Automation and Control

+ PE, contact arrangement to DIN EN 175 301-803-A and leading protective ground; Operating voltage/current: series GDM 250 V AC/DC/16 A, series GDML 250 V AC/DC/8.0 A, series GDME 400 VAC/250 VDC/16 A.Creeping current distances/air gaps to VDE 0110/11.72. Insulation group: C. Degree of protection (in plugged and secured state): IP 65. Degree of soiling: 3. Housing and contact block: glass fiber-reinforced polyamide compliant with UL 94 HB, GDME UL 94 V-1. Vibration-proof interlock with bushing screw. Supplied with screws.

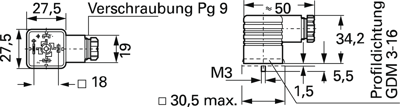

Angled cable jacks with Pg 9 screwed cable gland, type GDM 2009/GDM 3009/GDMF 3009.

For cable diameters from 4.5 to 7.0 mm, screw terminals up to max. 1.5 mm²; Color: black. Certifications: type 2009/3009 VDE, SEV, CSA, type 2009 J/3009 J with additional UR. Operating temperatures: - 40 to +125 °C. Seals are described below as accessory.

Type: GDM 2009, 2-pole + PE.

Technical specifications
Filter Property Value
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 2 pole + PE
Rated voltage 250 V
Degree of protection (IP) IP65
Wiring without circuit
LED display No
Type of locking central screw
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
