931382100 | Hirschmann Automation and Control

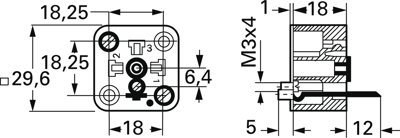

Valve panel plug, DIN shape A, 3 pole + PE, 400 V, 0.08-1.5 mm², 931382100
Unit Price (€ / pc.)
3.2011 € *
Available: 158 pcs.
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.7965 €
100 pcs.
2.4633 €
250 pcs.
2.3681 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve panel plug, GSC 300,Hirschmann Automation and Control

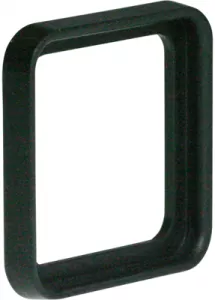

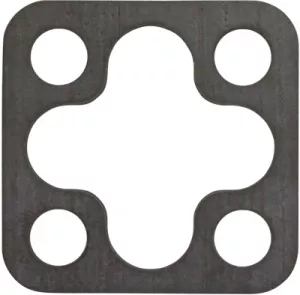

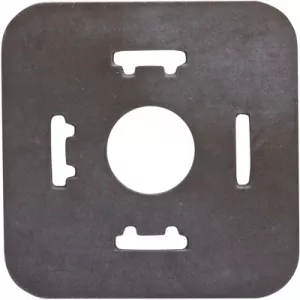

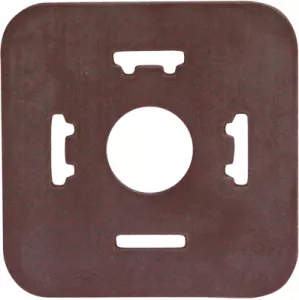

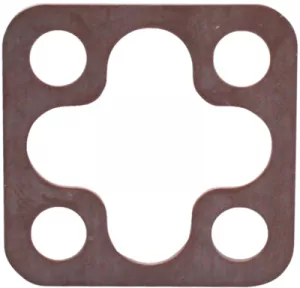

With bulkhead fastener for plane surfaces. For snap-in contacts with crimp terminal; Accessories: flat sealing and snap-in contacts are described below.
Type: GSC 300, panel connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.08-1.5 mm² | |
| Pin number | 3 pole + PE | |
| Rated voltage | 400 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | without circuit | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
