21752 | Hirschmann Automation and Control
Valve connector, DIN shape A, 2 pole + PE, 24 V, 0.25-1.5 mm², 21752
Unit Price (€ / pc.)
13.5422 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
13.54 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5422 €
10 pcs.
12.6259 €
50 pcs.
11.8286 €
100 pcs.
11.1146 €
*incl. VAT plus shipping costs
Subject to prior sale

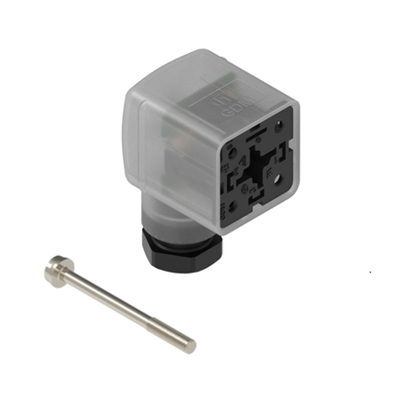

Valve Connector, 21752, Hirschmann Automation and Control
GDM Standard DIN Standard Field Attachable Connector, Form A, 3-pin (2+1PE, PE across cable outlet), transparent housing, screw type, 1/2" NPTF, with supressor diode and yellow LED, 24 V AC/DC, 10 A.
Technical specifications
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 24 V | |
| Degree of protection (IP) | IP65 | |
| Wiring | suppressordiode | |
| LED display | Yes | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
