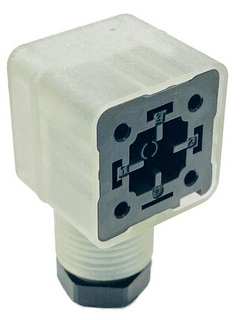

Valve Connector Type A, GDM21FJ-S24-10D, Hirschmann

With hydraulic, pneumatic and electromagnetic actuators and sensors, the GDM and GAN series stands ready for any harsh environment. Rugged, highly impermeable design guarantees uncompromising reliability in the most demanding applications.

FEATURES

• Long-lasting performance – state-of-the-art housing singularly engineered for mechanical challenges and vibrations, optionally with strain relief and UL2238 approval
• Outstanding reliability – high IP67 and IP69 impermeability combined with an extraordinary resistance towards environmental impacts, oils and lubricants
• Unmatched flexibility – choose from numerous configurations to match your individual application challenges

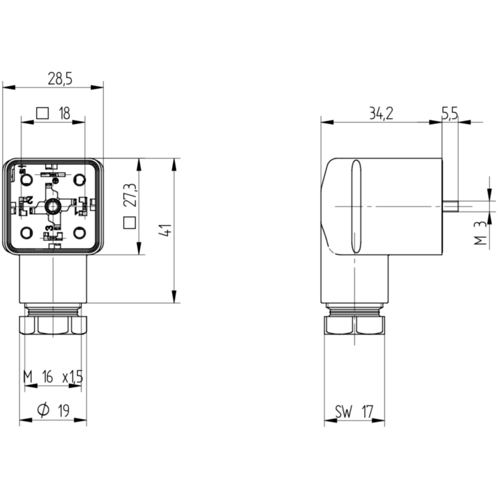

Technical Data

• Version: DIN FORM A
• Pin number: 2 + PE
• Wiring: Suppressordiode
• Cable cross-section: 0.25-1.5 mm²
