18058 | Hirschmann Automation and Control

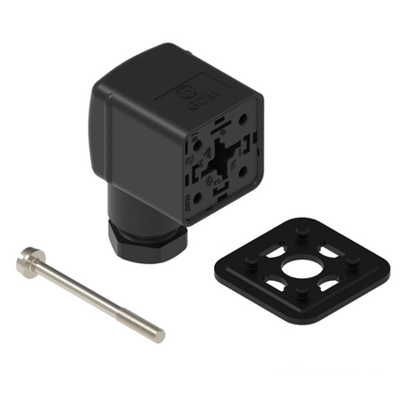

Valve connector, DIN shape A, 2 pole + PE, 230 V, 0.25-1.5 mm², 18058
Unit Price (€ / pc.)
5.8429 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
5.84 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8429 €
10 pcs.
5.4502 €
50 pcs.
5.1051 €
100 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale
Valve Connector, 18058, Hirschmann Automation and Control
GDM Standard DIN Standard Field Attachable Connector, Form A, 3-pin (2+1PE, PE across cable outlet), UL 2238, black housing, screw type, 1/2" NPTF with strain relief , without circuitry, 230 V AC/DC, 10 A.
Technical specifications
| Version | DIN shape A | |
| Cable cross-section | 0.25-1.5 mm² | |
| Pin number | 2 pole + PE | |
| Rated voltage | 230 V | |
| Degree of protection (IP) | IP65/IP67 | |
| Wiring | without circuit | |
| LED display | No | |
| Type of locking | central screw |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
