934442106 | Hirschmann Automation and Control

Plug, 4 pole, cable assembly, screw connection, 1.5 mm², gray, 934442106

Order No.: 40F555
EAN: 4099889861273
MPN:
934442106
STAS 4 N
Series: STAS

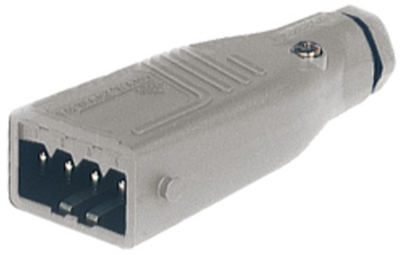

934442106 Hirschmann Automation and Control Device Connectors Image 1

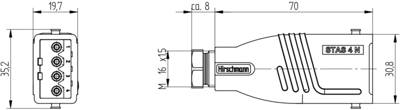

934442106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.4720 € *
Available: 18 pcs.
Next delivery: 200 pcs. on 2025-08-29
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4720 €
10 pcs.
9.2225 €
50 pcs.
8.5799 €
150 pcs.
8.2110 €
500 pcs.
7.7707 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial Connector, 4-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors up to max. 1.5 mm²; Contacts: CuZn, tinned. Housing: PA, gray. Contact block: PA, black. Rated voltage: 250 VAC/400 VDC. Rated current: 10 AUC. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Power gland, type STAS/STAK: M16 x 1.5/Pg 11. Cable diameter: 6.0 to 10 mm. Operating temperatures: - 30 to +90 °C. Certifications: VDE, SEV, UL.

Cable plugs, type STAS 4 N.

Technical attributes (type, housing color): STAS 4 N, gray

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 400 V
Rated current UL/CSA 10 A
Cable cross-section 1.5 mm²
Cable diameter 6 to 10 mm
Pin temperature 90 °C
Fuse holder present No
Design straight
Colour gray
Pin number 4 pole
Rated voltage IEC 250 V
Product type plug
Line filter present No
Rated current IEC 10 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
