932533106 | Hirschmann Automation and Control

Jack, 4 pole, cable assembly, screw connection, 1.5 mm², gray, 932533106

Order No.: 40F560
EAN: 4099889861280
MPN:
932533106
STAK 4
Series: STAK
932533106 Hirschmann Automation and Control Device Connectors Image 1
932533106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.5553 € *
Available: 132 pcs.
Total Price:
10.56 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5553 €
10 pcs.
9.2939 €
50 pcs.
8.6513 €
150 pcs.
8.2705 €
500 pcs.
7.8540 €
*incl. VAT plus shipping costs
Subject to prior sale

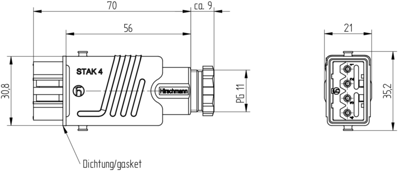

Industrial Connector, 4-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors up to max. 1.5 mm²; Contacts: CuZn, tinned. Housing: PA, gray. Contact block: PA, black. Rated voltage: 250 VAC/400 VDC. Rated current: 10 AUC. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Power gland, type STAS/STAK: M16 x 1.5/Pg 11. Cable diameter: 6.0 to 10 mm. Operating temperatures: - 30 to +90 °C. Certifications: VDE, SEV.

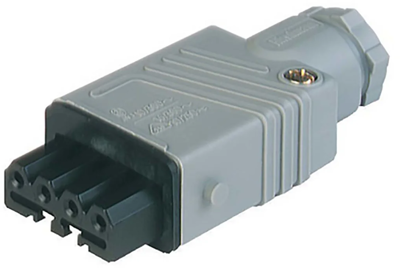

Cable jacks, type STAK 4.

Technical attributes (type, housing color): STAK 4, gray

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 400 V
Rated current UL/CSA 10 A
Cable cross-section 1.5 mm²
Cable diameter 6 to 10 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 4 pole
Rated voltage IEC 250 V
Product type jack
Rated current IEC 10 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
