932448100 | Hirschmann Automation and Control

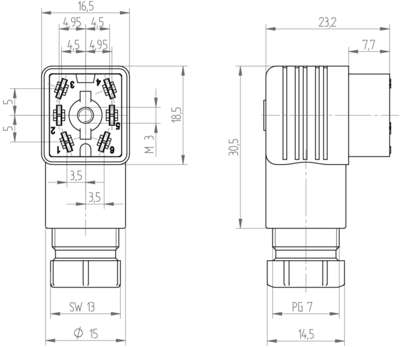

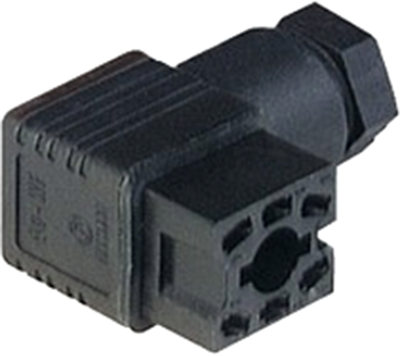

Jack, 6 pole, cable assembly, solder connection, 0.14-0.5 mm², black, 932448100
Angled connectors series G, type Hirschmann GO 6.
Particularly compact device for electrical connections in pneumatic or hydraulic control systems, for sensors and measuring instruments. No ground contacts. For applications in confined spaces with high degree of soiling; Rated voltage: 50 V AC/DC (types GO 60 V AC/DC to 250 V AC/DC. Rated current: max. 6.0 A. The connectors are coded and therefore incompatible with any other operating voltages. With solder terminals for 0.14 to 0.5 mm² conductor cross-sections. Cable outer diameter: 4.0 to 7.5 mm. Cable gland: Pg 7. Degree of protection to IEC 60529: IP 65. Contact resistance: max. 4.0 mohm. Degree of soiling: 3. Contacts: fork spring, type GO 6.. FAV M with multipoint contacts.) Contact finish: tin. Contact block material: PA. Housing material: PA, black. Combustibility to UL 94 V-1. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.
Technical attributes (type number of poles, rated voltage): GO 60 WF, 6-pole, 250 V AC/DC
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | solder connection | |
| Rated current IEC | 6 A | |
| Pin number | 6 pole | |
| Product type | jack | |
| Rated current UL/CSA | 6 A | |
| Cable diameter | 4 to 7.5 mm | |
| Switch illuminated | No | |
| Power switch available | No | |
| Pin temperature | 90 °C | |
| Rated voltage UL/CSA | 50 V | |
| Assembly | cable assembly | |
| Cable cross-section | 0.14-0.5 mm² | |
| Design | angled | |
| Rated voltage IEC | 50 V |
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
