932447100 | Hirschmann Automation and Control

Jack, 6 pole, cable assembly, solder connection, 0.14-0.5 mm², black, 932447100

Order No.: 51F100
EAN: 4099889864809
MPN:
932447100
GO 6 WF
Series: GO

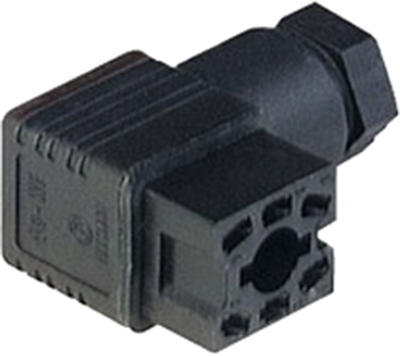

932447100 Hirschmann Automation and Control Device Connectors Image 1

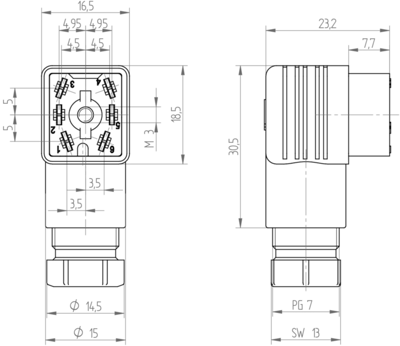

932447100 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.2118 € *
Available: 1,021 pcs.
Total Price:
6.21 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2118 €
10 pcs.
5.4859 €
100 pcs.
4.7957 €
250 pcs.
4.6172 €
1000 pcs.
4.3197 €
*incl. VAT plus shipping costs
Subject to prior sale

Angled connectors series G, type Hirschmann GO 6.

Particularly compact device for electrical connections in pneumatic or hydraulic control systems, for sensors and measuring instruments. No ground contacts. For applications in confined spaces with high degree of soiling; Rated voltage: 50 V AC/DC (types GO 60 V AC/DC to 250 V AC/DC. Rated current: max. 6.0 A. The connectors are coded and therefore incompatible with any other operating voltages. With solder terminals for 0.14 to 0.5 mm² conductor cross-sections. Cable outer diameter: 4.0 to 7.5 mm. Cable gland: Pg 7. Degree of protection to IEC 60529: IP 65. Contact resistance: max. 4.0 mohm. Degree of soiling: 3. Contacts: fork spring, type GO 6.. FAV M with multipoint contacts.) Contact finish: tin. Contact block material: PA. Housing material: PA, black. Combustibility to UL 94 V-1. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.

Technical attributes (type number of poles, rated voltage): GO 6 WF, 6-pole, 50 V AC/DC

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 50 V
Rated current UL/CSA 6 A
Cable cross-section 0.14-0.5 mm²
Cable diameter 4 to 7.5 mm
Pin temperature 90 °C
Design angled
Colour black
Pin number 6 pole
Rated voltage IEC 50 V
Product type jack
Rated current IEC 6 A
Connection solder connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
