932142106 | Hirschmann Automation and Control

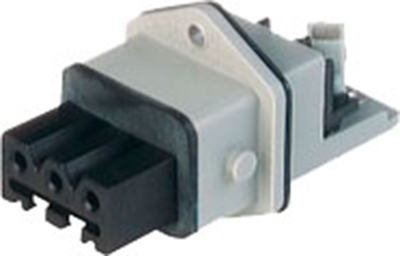

Panel socket, 3 pole, panel mounting, screw connection, 1.5 mm², gray, 932142106
Unit Price (€ / pc.)
6.5093 € *
Available: 194 pcs.
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.7477 €
100 pcs.
5.0337 €
250 pcs.
4.8314 €
1000 pcs.
4.5339 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature Connector, 3-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductor cross-sections of max. 1.5 mm²; Contacts: CuZn, tin. Housing: PA to UL 94 VDC1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 VDC/400 VAC. Rated current: 10 A DC/16 A AC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection to IEC 60529: IP 54. Degree of soiling: 3. Cable gland: Pg 11. Cable diameters: 6.0 mm to 10 mm. Operating temperatures: –30 °C to +90 °C. Certifications: VDE, SEV, UL.
Panel jacks, type STAKEI 3 N.
Type: STAKEI 3 N, panel jack
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage UL/CSA | 400 V | |
| Rated voltage IEC | 250 V | |
| Pin number | 3 pole | |
| Power switch available | No | |
| Colour | gray | |
| Rated current UL/CSA | 16 A | |
| Cable cross-section | 1.5 mm² | |
| Connection | screw connection | |
| Assembly | panel mounting | |
| Pin temperature | 90 °C | |
| Design | straight | |
| Rated current IEC | 16 A | |
| Cable diameter | 6 to 10 mm | |
| Switch illuminated | No | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
