932047106 | Hirschmann Automation and Control

Panel socket, 2 pole, panel mounting, screw connection, 1.5 mm², gray, 932047106

Order No.: 40F486
EAN: 4099889861181
MPN:
932047106
STAKEI 200
Series: STAK

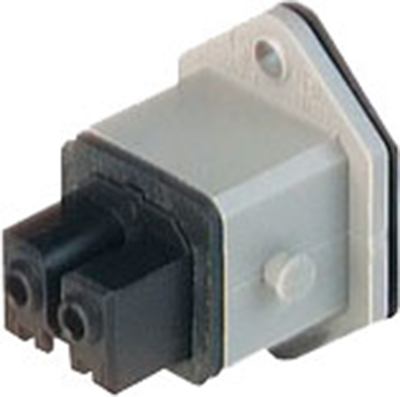

932047106 Hirschmann Automation and Control Device Connectors Image 1

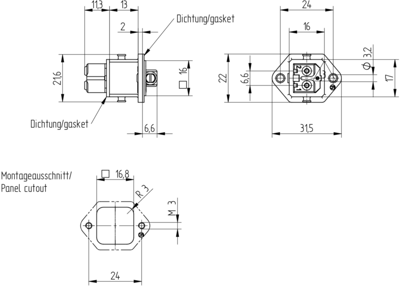

932047106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.2594 € *
Available: 194 pcs.
Total Price:
6.26 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2594 €
10 pcs.
5.5216 €
100 pcs.
4.8314 €
250 pcs.
4.6529 €
1000 pcs.
4.3554 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL, VDE, SEV. Not compatible with connectors with end numbers 2 and 20.

Panel jacks with coding slot, type STAKEI 200.

Type: STAKEI 200, panel jack

Technical specifications
Filter Property Value
Switch illuminated No
Assembly panel mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 16 A
Cable cross-section 1.5 mm²
Cable diameter 4 to 6.5 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 2 pole
Rated voltage IEC 250 V
Product type panel socket
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
