932046106 | Hirschmann Automation and Control

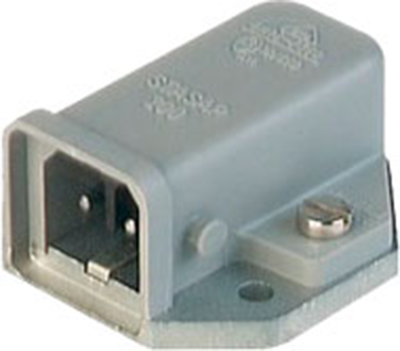

Surface-mounting plug, 2 pole, PCB mounting, screw connection, 1.5 mm², gray, 932046106
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL, VDE, SEV. Not compatible with connectors with end numbers 2 and 20.

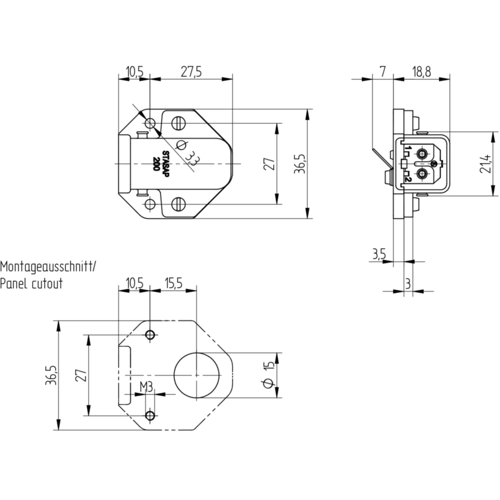

Surface-mount connectors with strain relief and coding fin, type STASAP 200.
Additional sealing measures have to be taken at the installation location in order to reach degree of protection IP 54.
Type: STASAP 200, surface-mount connector
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 90 °C | |
| Power switch available | No | |
| Colour | gray | |
| Assembly | PCB mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 16 A | |
| Cable diameter | 4 to 6.5 mm | |
| Design | straight | |
| Connection | screw connection | |
| Switch illuminated | No | |
| Product type | surface-mounting plug | |
| Pin number | 2 pole | |
| Rated current IEC | 16 A | |
| Cable cross-section | 1.5 mm² |
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
