931782106 | Hirschmann Automation and Control

Panel socket, 3 pole, panel mounting, solder connection, gray, 931782106

Order No.: 50F800
EAN: 4099889864748
MPN:
931782106
G 30 E 3 F
Series: G

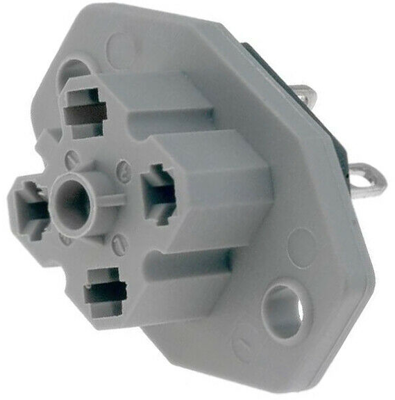

931782106 Hirschmann Automation and Control Device Connectors Image 1

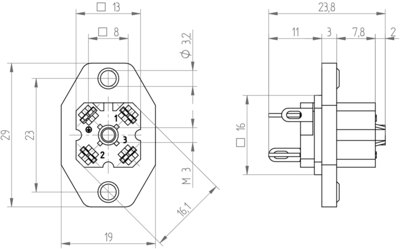

931782106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
3.4748 € *
Available: 397 pcs.
Total Price:
3.47 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4748 €
10 pcs.
3.0702 €
100 pcs.
2.6775 €
250 pcs.
2.5704 €
1000 pcs.
2.4038 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector, 3-pole + PE, type Hirschmann G 30.

Suited for power and control cable connections for small drives, hydraulic and pneumatic control systems, electrical appliances in the medical sector and photocells, with coding against faulty insertion; Rated voltage: 250 V AC/DC. Rated current: 10 A (line coupling type G 30 W 3 F, 6.0 A). Contact resistance: max. 4.0 mohm. Cable diameters: 4.0 to 7.5 mm. Degree of protection (IEC 60529): IP 65. Degree of soiling: 3. Contact finish: tin. Contact block and housing material: PA, gray. Inflammability class: 94 HB. Operating temperatures: –40 to +90 °C. Standards and certifications: DIN VDE 0627, IEC 61984.

Panel sockets, type G 30 E 3 F.

With soldering contacts; Contact type: fork-type spring.

Type: G 30 E 3 F, panel socket

Technical specifications
Filter Property Value
Rated voltage UL/CSA 250 V
Rated voltage IEC 250 V
Pin number 3 pole
Power switch available No
Colour gray
Rated current UL/CSA 10 A
Connection solder connection
Assembly panel mounting
Pin temperature 90 °C
Design straight
Rated current IEC 10 A
Cable diameter 4 to 7.5 mm
Switch illuminated No
Product type panel socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin HU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
