931265106 | Hirschmann Automation and Control

Plug, 2 pole, cable assembly, screw connection, 1.5 mm², gray, 931265106

Order No.: 40F452
EAN: 4099889861075
MPN:
931265106
STAS 20
Series: STAS

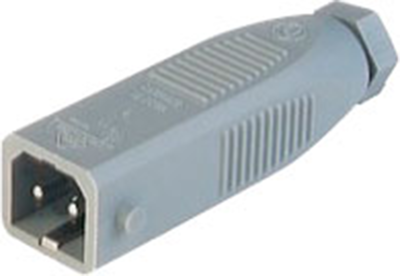

931265106 Hirschmann Automation and Control Device Connectors Image 1
931265106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.6160 € *
Available: 368 pcs.
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6160 €
10 pcs.
6.7235 €
50 pcs.
6.2475 €
150 pcs.
5.9738 €
500 pcs.
5.6763 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.

Cable connectors with strain relief, type STAS 20.

Type: STAS 20, cable plug

Technical specifications
Filter Property Value
Rated voltage IEC 250 V
Pin temperature 90 °C
Power switch available No
Colour gray
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 16 A
Cable diameter 4 to 6.5 mm
Fuse holder present No
Design straight
Connection screw connection
Switch illuminated No
Product type plug
Pin number 2 pole
Rated current IEC 16 A
Cable cross-section 1.5 mm²
Line filter present No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
