931264106 | Hirschmann Automation and Control

Jack, 2 pole, cable assembly, screw connection, 1.5 mm², gray, 931264106

Order No.: 40F472
EAN: 4099889861136
MPN:
931264106
STAK 20
Series: STAK

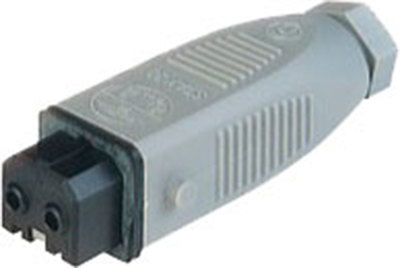

931264106 Hirschmann Automation and Control Device Connectors Image 1

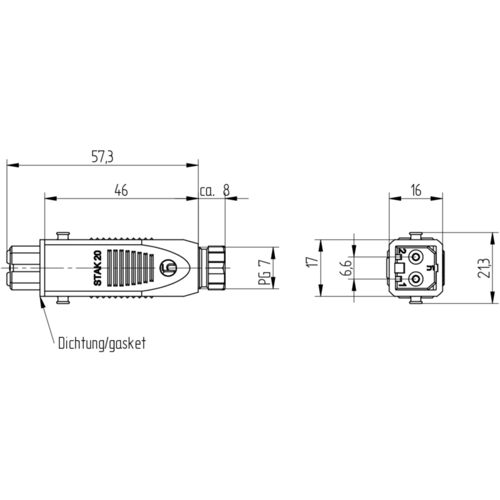

931264106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9611 € *
Available: 390 pcs.
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
10 pcs.
6.9972 €
50 pcs.
6.5093 €
150 pcs.
6.2356 €
500 pcs.
5.9143 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.

Jacks with strain relief, type STAK 20.

Type: STAK 20, jack

Technical specifications
Filter Property Value
Switch illuminated No
Assembly cable assembly
Rated voltage UL/CSA 250 V
Rated current UL/CSA 16 A
Cable cross-section 1.5 mm²
Cable diameter 4 to 6.5 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 2 pole
Rated voltage IEC 250 V
Product type jack
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
