930822106 | Hirschmann Automation and Control

Surface-mounting plug, 2 pole, PCB mounting, screw connection, 1.5 mm², gray, 930822106

Order No.: 40F463
EAN: 4099889861112
MPN:
930822106
STASAP 2 B
Series: STAS

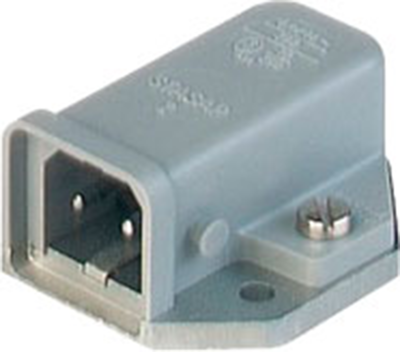

930822106 Hirschmann Automation and Control Device Connectors Image 1

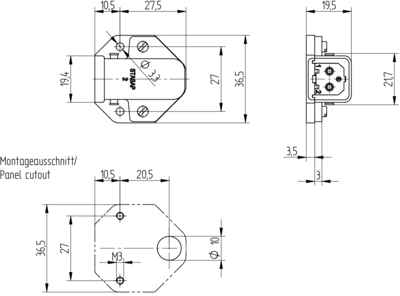

930822106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.0436 € *
Available: 224 pcs.
Total Price:
10.04 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0436 €
10 pcs.
8.8417 €
50 pcs.
8.2467 €
150 pcs.
7.8778 €
500 pcs.
7.4732 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.

Surface-mount Connector, type STASAP 2 B.

If protective ground is required the appliance must be electrically bonded to the base plate. Additionally, the installation location needs to be sealed in order to achieve degree of protection IP 54.

Type: STASAP 2 B, surface - mount connector

Technical specifications
Filter Property Value
Switch illuminated No
Assembly PCB mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 16 A
Cable cross-section 1.5 mm²
Cable diameter 4 to 6.5 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 2 pole
Rated voltage IEC 250 V
Product type surface-mounting plug
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
