930622106 | Hirschmann Automation and Control

Panel plug, 2 pole, PCB mounting, screw connection, 1.5 mm², gray, 930622106

Order No.: 40F460
EAN: 4099889861099
MPN:
930622106
STASEI 2
Series: STAS

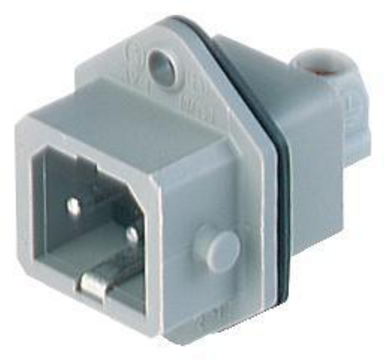

930622106 Hirschmann Automation and Control Device Connectors Image 1
930622106 Hirschmann Automation and Control Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.0095 € *
Available: 166 pcs.
Next delivery: 200 pcs. on 2025-10-30
Total Price:
6.01 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0095 €
10 pcs.
5.2836 €
100 pcs.
4.6410 €
250 pcs.
4.4625 €
1000 pcs.
4.1650 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.

With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.

Panel Connector, type STASEI 2.

Type: STASEI 2, panel connector

Technical specifications
Filter Property Value
Switch illuminated No
Assembly PCB mounting
Rated voltage UL/CSA 250 V
Rated current UL/CSA 16 A
Cable cross-section 1.5 mm²
Cable diameter 4 to 6.5 mm
Pin temperature 90 °C
Design straight
Colour gray
Pin number 2 pole
Rated voltage IEC 250 V
Product type panel plug
Rated current IEC 16 A
Connection screw connection
Power switch available No
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
