930621106 | Hirschmann Automation and Control

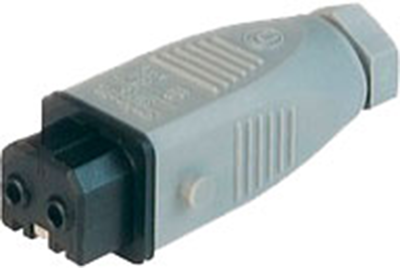

Jack, 2 pole, cable assembly, screw connection, 1.5 mm², gray, 930621106
Unit Price (€ / pc.)
6.3903 € *
Available: 28 pcs.
Total Price:
6.39 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3903 €
10 pcs.
5.6406 €
100 pcs.
4.9385 €
250 pcs.
4.7481 €
1000 pcs.
4.4506 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.
Jacks without strain relief, type STAK 2.
Type: STAK 2, jack
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage IEC | 250 V | |
| Pin temperature | 90 °C | |
| Power switch available | No | |
| Colour | gray | |
| Assembly | cable assembly | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 16 A | |
| Cable diameter | 4 to 6.5 mm | |
| Design | straight | |
| Connection | screw connection | |
| Switch illuminated | No | |
| Product type | jack | |
| Pin number | 2 pole | |
| Rated current IEC | 16 A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
