930329106 | Hirschmann Automation and Control

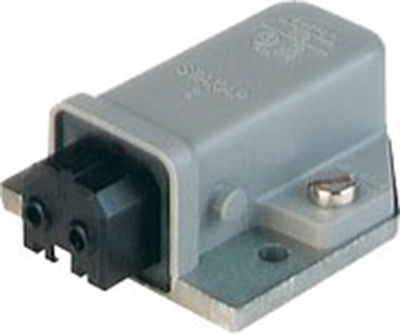

Surface mount socket, 2 pole, screw mounting, screw connection, 1.5 mm², gray, 930329106
Miniature Connector, 2-pole + PE, type Hirschmann STAS../STAK.
With screw terminals for conductors to max. 1.5 mm²; Contacts: CuZn, tin. Case: PA to UL 94 V-1, gray. Contact carrier: PA to UL 94 HB. Rated voltage: 250 V AC/DC. Rated current: 10 ADC/16 AAC. Contact resistance: 5.0 mohm. Pin diameter: 2.0 mm. Degree of protection (IEC 60529): IP 54. Degree of soiling: 3. Screwed cable gland: Pg 7. Cable diameter: 4.0 to 6.5 mm. Operating temperatures: - 30 to +90 °C. Certifications: UL. Not compatible with connectors with end number 200.
Surface-mount sockets, type STAKAP 2.
If protective ground is required the appliance must be electrically bonded to the base plate. Additionally, the installation location needs to be sealed in order to achieve degree of protection IP 54.
Type: STAKAP 2, surface-mount socket
| Filter | Property | Value |
|---|---|---|
| Pin temperature | 90 °C | |
| Cable diameter | 4 to 6.5 mm | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Connection | screw connection | |
| Power switch available | No | |
| Design | straight | |
| Pin number | 2 pole | |
| Switch illuminated | No | |
| Rated current UL/CSA | 16 A | |
| Rated voltage IEC | 250 V | |
| Product type | surface mount socket | |
| Rated current IEC | 16 A | |
| Colour | gray | |
| Cable cross-section | 1.5 mm² |
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
