HR30-6R-6S(71) | HIROSE

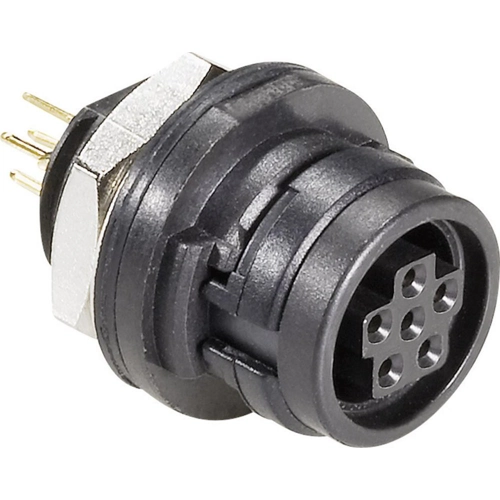

Panel socket, 6 pole, solder cup, push pull, straight, HR30-6R-6S(71)
Unit Price (€ / pc.)
5.355 € *
Available: 422 pcs.
Circular connector with push-pull lock, IP 67, type Hirose HR30.
Solder terminals; Rated voltage: 100 VAC/140 VDC. Rated current: 2.0 A. Contacts: gold-plated. Cable entry: 4.2 to 5.0 mm. Dielectric strength: 300 VAC/min. Insulation resistance: 1.0 Gohm. Contact resistance: max. 15 mohm. Operating temperatures: - 25 to +85 °C.
Receptacles, female, type HR30.
Technical attributes (type, number of poles, dimensions): HR30 - 6R - 6S(71), 6 - pole, A 18.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | push pull | |
| Pin number | 6 pole | |
| contact surface | gold-plated | |
| Cable cross-section | 12.0 mm² | |
| Shell Material | plastic | |
| Contact connection | solder cup | |
| Assembly | PCB mounting | |
| Version | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
