HR10A-10P-12S(73) | HIROSE

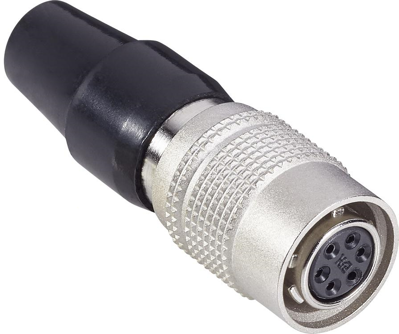

Socket, 12 pole, solder cup, push pull, straight, HR10A-10P-12S(73)
Unit Price (€ / pc.)
15.1249 € *
Standard delivery time from the manufacturer is: 14 Weeks
Circular connector with push-pull lock, type Hirose HR10.
Solder terminals; Dielectric strength: 300 VAC/min. Current rating: 2.0 A. Insulation resistance: 1.0 Gohm. Contact resistance: max. 10 mohm.
Circular connector with plastic bushing, type HR10A.
Contacts: gold-plated.
Sockets, straight.

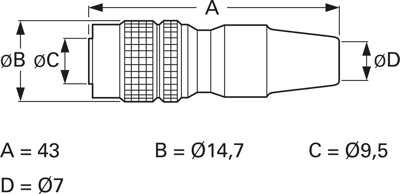

Technical attributes (type, number of poles, dimensions): HR10A-10P-12S(73), 12-pole, A 43, B 14.7, C 9.5, D 7.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | push pull | |
| Cable cross-section | 14.7 mm² | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Version | socket | |
| Contact connection | solder cup | |
| Pin number | 12 pole | |
| Shell Material | metal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
