TM 31 | HIROSE

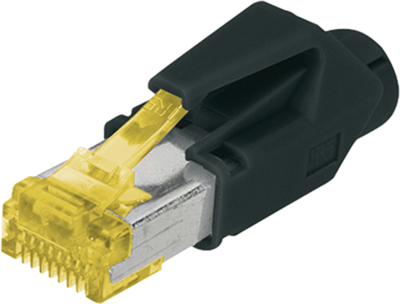

Plug, RJ45, 8 pole, 8P8C, Cat 6A, cable assembly, TM 31
Order No.: 73F1435
EAN: 4016032272144
MPN:
TM 31
Unit Price (€ / pc.)
2.2015 € *
Available in 7 Days: 1,334 pcs. - if ordered today
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2015 €
10 pcs.
2.0706 €
50 pcs.
1.9516 €
100 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale
RJ45 modular connector, TM 31, HIROSE
8-pole, for 10/100 Mbps Fast Ethernet, shielded, with strain relief and anti-kink bushing; Contact material: phosphor bronze. Finish: 8.0 µ gold plating on nickel primer. Material connector housing: polycarbonate. Material shielding plate: 0.5 mm brass with 2.0 µ gold plating. Conductor diameter: AWG 27/ to 24/7. Cable outer diameter: 5.5 to 6.2 mm. Insertion/removal cycles: min 750. Current rating: 1.0 A (at +50 °C). Inflammability: UL94 V-2. Operating temperatures: -20 to + +60 °C.
Type: A-MO6A 8/8 HRS, RJ45 plug, CAT 6A.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| RJ-Version | RJ45 | |
| Pin number | 8 pole | |
| Pole image | 8P8C | |
| Category | Cat 6A | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
