4008 | HEYCO

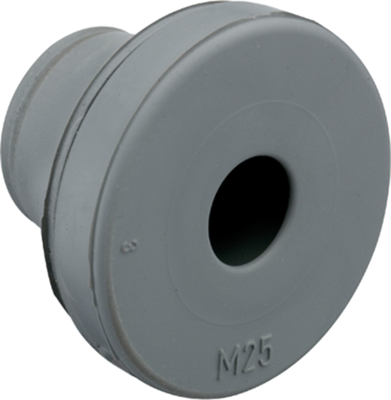

Cable gland, cable Ø 5 to 9 mm, M25, EPDM, gray, 4008
Order No.: 12H3756
EAN: 4099891195885
MPN:
4008
Unit Price (€ / pc.)
0.7497 € *
Available: 96 pcs.
Cable bushings, type Heyman 2065.
Double diaphragm bushing for mounting one side by means of finger pressure, no locknut required, ozone and weatherproof, can be used as dummy hole cover if no cable is fed in, easy strain relief with membrane; Operating temperatures: –40 to +93 °C. Degree of protection: IP 67. Panel thickness: 1.0 to 4.0 mm (type 206527 = 0.5 to 2.0 mm). Color: gray.
Technical attributes (type, cable diameter (CD), mounting hole): 206528, 5.0 to 9.0 mm, 16.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| max. Cable diameter | 9 mm | |
| Wall thickness | 4 mm | |
| min. cable diameter | 5 mm | |
| Material | EPDM | |
| Product type | cable gland | |
| max. operating temperature | 93 °C | |
| min. operating temperature | -40 °C | |
| Mounting hole size | 16.5 mm | |
| Thread size | M25 | |
| Length | 18 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
