2157 | HEYCO

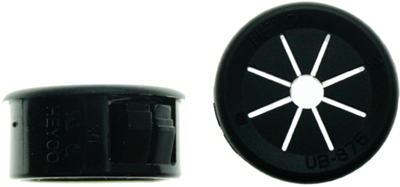

Grommet, cable Ø 20.6 mm, PA, black, 2157
Order No.: 12H3616
EAN: 4099891195823
MPN:
2157
Unit Price (€ / pc.)
0.3332 € *
Available: 24 pcs.
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3332 €
50 pcs.
0.2927 €
100 pcs.
0.2689 €
500 pcs.
0.2523 €
1000 pcs.
0.2178 €
*incl. VAT plus shipping costs
Subject to prior sale
Grommets with centering insert, type Heyman 20../21.
Material: PA 6.6. Color: black, max. Panel thickness: 3.2 mm. Operating temperatures: to +105 °C. Inflammability to UL 94 V-2.
Technical attributes (type, max. cable diameter (B), mounting hole diameter (d), collar diameter (A), total length (C)): 2157, CD 20.6, d 27.8, A 29.4, C 11.5 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Mounting hole size | 27.8 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -18 °C | |
| Material | PA | |
| Wall thickness | 3.2 mm | |
| Product type | grommet | |
| max. Cable diameter | 20.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
