4965 | HEYCO

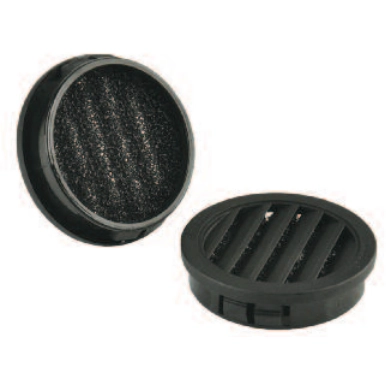

Cover cap, with filter, (H) 20.9 mm, head Ø 69 mm, mounting Ø 63.5 mm, thickness 3.2 mm, PA, black, 4965
Order No.: 12H9856
EAN: 4099891761516
MPN:
4965
Unit Price (€ / pc.)
4.0341 € *
Standard delivery time from the manufacturer is: 5 Weeks
Cover cap, 4965, HEYCO
The 4965 is a filter insert louvered plug with mounting hole diameter range 63,5 mm. It is located behind the louvers, filter inserts permit the passage of air for ventilation but limit liquid as well as dust and pest infiltration. Polyurethane foam filter will filter particle sizes 30 micron and larger.
Technical specifications
| Colour | black | |
| Material | PA | |
| Mounting hole size | 63.5 mm | |
| Product type | cover cap | |
| Version | with filter | |
| Head Diameter | 69 mm | |
| min. operating temperature | -40 °C | |
| Height | 20.9 mm | |
| Wall thickness | 3.2 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | US |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
