4951 | HEYCO

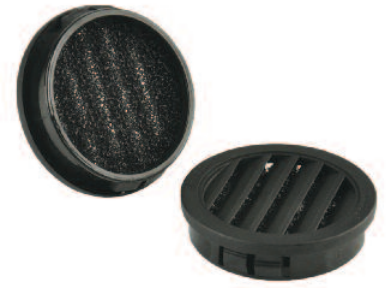

Cover cap, with filter, (H) 13.5 mm, head Ø 30.9 mm, mounting Ø 28.6 mm, thickness 3.2 mm, PA, black, 4951
Order No.: 12H9852
EAN: 4099891761479
MPN:
4951
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: On Request
Cover cap, 4951, HEYCO
The 4951 is a filter insert louvered plug with mounting hole diameter range 27,8-28,6 mm. It is located behind the louvers, filter inserts permit the passage of air for ventilation but limit liquid as well as dust and pest infiltration. Polyurethane foam filter will filter particle sizes 30 micron and larger.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 3.2 mm | |
| Colour | black | |
| Product type | cover cap | |
| Version | with filter | |
| Height | 13.5 mm | |
| Mounting hole size | 28.6 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Head Diameter | 30.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
