4947 | HEYCO
Cover cap, with filter, (H) 13.5 mm, head Ø 25.8 mm, mounting Ø 22.2 mm, thickness 3.2 mm, PA, black, 4947
Order No.: 12H9850
EAN: 4099891761455
MPN:
4947
Unit Price (€ / pc.)
3.0345 € *
Standard delivery time from the manufacturer is: On Request

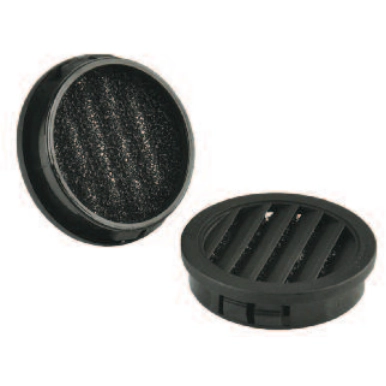

Cover cap, 4947, HEYCO
The 4947 is a filter insert louvered plug with mounting hole diameter range 22,2 mm. It is located behind the louvers, filter inserts permit the passage of air for ventilation but limit liquid as well as dust and pest infiltration. Polyurethane foam filter will filter particle sizes 30 micron and larger.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cover cap | |
| Version | with filter | |
| Height | 13.5 mm | |
| Head Diameter | 25.8 mm | |
| Wall thickness | 3.2 mm | |
| Mounting hole size | 22.2 mm | |
| Colour | black | |
| Material | PA | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
