2598 | HEYCO
Cover cap, with filter, (H) 20.9 mm, head Ø 80.5 mm, mounting Ø 76.2 mm, thickness 3.2 mm, PA, black, 2598
Order No.: 12H9865
EAN: 4099891761608
MPN:
2598
Unit Price (€ / pc.)
4.0817 € *
Standard delivery time from the manufacturer is: 5 Weeks

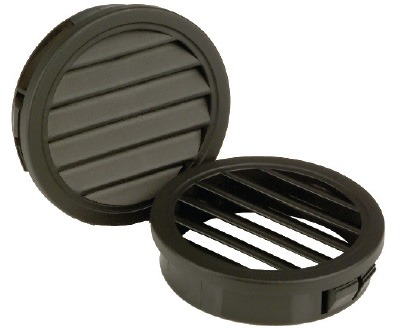

Cover cap, 2598, HEYCO
The 2598 is a louvered plug with mounting hole diameter range 76,2 mm. Suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels. Louvers permit the passage of air for ventilation but limit liquid infiltration.
Features
- Quick and easy installation with flexible orientation of louver direction
- Locking fingers in fractional increments up to the maximum panel thickness
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cover cap | |
| Wall thickness | 3.2 mm | |
| Height | 20.9 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Colour | black | |
| Head Diameter | 80.5 mm | |
| Version | with filter | |
| Mounting hole size | 76.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
