2569 | HEYCO
Cover cap, with filter, (H) 13.8 mm, head Ø 42.6 mm, mounting Ø 38.1 mm, thickness 3.2 mm, PA, black, 2569
Order No.: 12H9862
EAN: 4099891761578
MPN:
2569
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: On Request
Cover cap, 2569, HEYCO

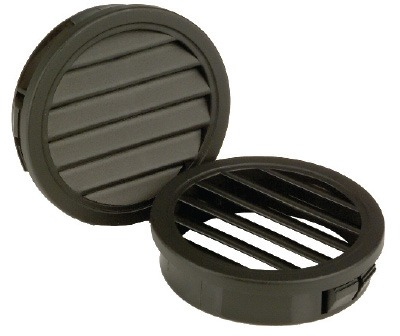

The 2569 is a louvered plug with mounting hole diameter range 38,1 mm. Suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels. Louvers permit the passage of air for ventilation but limit liquid infiltration.
Features
- Quick and easy installation with flexible orientation of louver direction
- Locking fingers in fractional increments up to the maximum panel thickness
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 3.2 mm | |
| Colour | black | |
| Product type | cover cap | |
| Version | with filter | |
| Height | 13.8 mm | |
| Mounting hole size | 38.1 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Head Diameter | 42.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
