2559 | HEYCO
Cover cap, with filter, (H) 13.5 mm, head Ø 30.6 mm, mounting Ø 25.4 mm, thickness 3.2 mm, PA, black, 2559
Order No.: 12H9859
EAN: 4099891761547
MPN:
2559
Unit Price (€ / pc.)
0.3094 € *
Standard delivery time from the manufacturer is: On Request

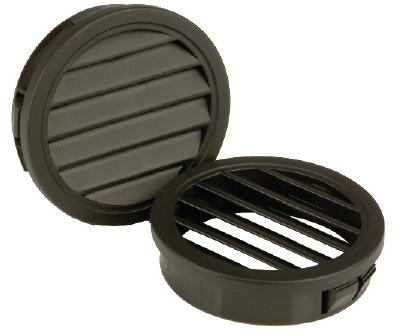

Cover cap, 2559, HEYCO
The 2559 is a louvered plug with mounting hole diameter range 25,4 mm. Suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels. Louvers permit the passage of air for ventilation but limit liquid infiltration.
Features
- Quick and easy installation with flexible orientation of louver direction
- Locking fingers in fractional increments up to the maximum panel thickness
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 3.2 mm | |
| Material | PA | |
| Mounting hole size | 25.4 mm | |
| max. operating temperature | 105 °C | |
| Product type | cover cap | |
| Head Diameter | 30.6 mm | |
| Height | 13.5 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Version | with filter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
