2557 | HEYCO
Cover cap, with filter, (H) 13.5 mm, head Ø 25.8 mm, mounting Ø 22.2 mm, thickness 3.2 mm, PA, black, 2557
Order No.: 12H9858
EAN: 4099891761530
MPN:
2557
Unit Price (€ / pc.)
0.2594 € *
Standard delivery time from the manufacturer is: On Request

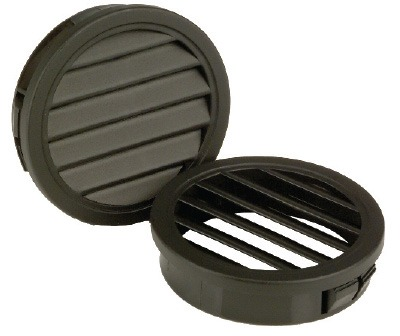

Cover cap, 2557, HEYCO
The 2557 is a louvered plug with mounting hole diameter range 22,2 mm. Suitable for ventilation in electronic enclosures, motor housings and metal or plastic panels. Louvers permit the passage of air for ventilation but limit liquid infiltration.
Features
- Quick and easy installation with flexible orientation of louver direction
- Locking fingers in fractional increments up to the maximum panel thickness
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 3.2 mm | |
| Colour | black | |
| Product type | cover cap | |
| Version | with filter | |
| Height | 13.5 mm | |
| Mounting hole size | 22.2 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Head Diameter | 25.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
