M8542 | HEYCO
Cable gland, PG13.5, Clamping range 4.3 to 11.4 mm, IP68, black, M8542
Order No.: 12H5607
MPN:
M8542
Unit Price (€ / pc.)
5.1051 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, M8542, HEYCO

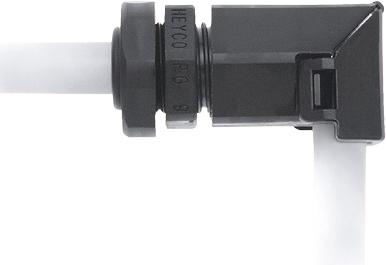

Right angle, PG hub with integral sealing ring. Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Features
- Integral sealing ring ensures a superior seal at the clearance or threaded mounting hole location, every time
- All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
- Approved for NEMA 4, 4X, 6 and 6P applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 115 °C | |
| Length | 56.1 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Material | PA/TPE | |
| Thread size | PG13.5 | |
| min. clamping range | 4.3 mm | |
| max. clamping range | 11.4 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
