3246 | HEYCO

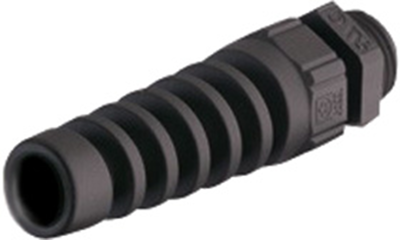

Cable gland, with bend protection, PG13.5, 24 mm, Clamping range 5 to 12 mm, IP68, black, 3246
Order No.: 12H6584
EAN: 4099891198886
MPN:
3246
No longer in assortment
Unit Price (€ / pc.)
1.0948 € *
Available: 50 pcs.
Cord grips, type Heyman 32../34.
With anti-kink bushing, DIN 40430 conduit thread. Installable in mounting holes with or without thread. Material: PA 6.6 to UL 94 V-2. Seal ring: Neoprene. Operating temperatures: max. 80 °C. Degree of protection to DIN 40050: IP 68. Certifications: UL, CSA, VDE.

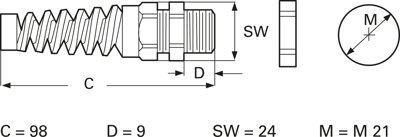

Technical attributes (Pg size, cable diameter, mounting hole (M), dimensions (C/D), width across flats (W), color): Pg 13.5, 5.0 to 12, M 21, C 98/D 9.0 mm, W 24, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 12 mm | |
| Product type | cable gland | |
| Thread size | PG13.5 | |
| max. operating temperature | 80 °C | |
| Degree of protection (IP) | IP68 | |
| spanner size | 24 mm | |
| Material | PA | |
| Colour | black | |
| Version | with bend protection | |
| min. clamping range | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
