3243 | HEYCO

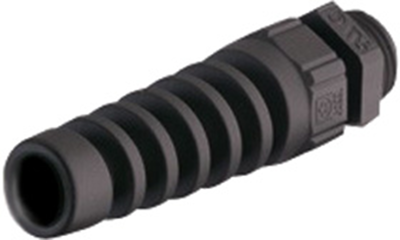

Cable gland, with bend protection, PG11, 22 mm, Clamping range 4 to 10 mm, IP68, black, 3243
Order No.: 12H6564
EAN: 4099891198855
MPN:
3243
Unit Price (€ / pc.)
2.9512 € *
Available: 828 pcs.
Total Price:
2.95 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9512 €
25 pcs.
2.5109 €
*incl. VAT plus shipping costs
Subject to prior sale
Cord grips, type Heyman 32../34.
With anti-kink bushing, DIN 40430 conduit thread. Installable in mounting holes with or without thread. Material: PA 6.6 to UL 94 V-2. Seal ring: Neoprene. Operating temperatures: max. 80 °C. Degree of protection to DIN 40050: IP 68. Certifications: UL, CSA, VDE.

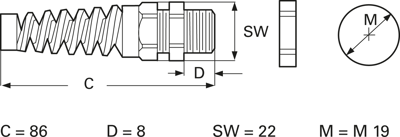

Technical attributes (Pg size, cable diameter, mounting hole (M), dimensions (C/D), width across flats (W), color): Pg 11, 4.0 to 10, M 19, C 86/D 8.0 mm, W 22, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Thread size | PG11 | |
| Product type | cable gland | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | black | |
| Version | with bend protection | |
| max. operating temperature | 80 °C | |
| min. clamping range | 4 mm | |
| max. clamping range | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
