1060 | HEYCO
Cable gland, 9.5 mm, Clamping range 3.2 to 4.8 mm, black, 1060
Order No.: 12H2870
EAN: 4099891198558
MPN:
1060
Unit Price (€ / pc.)
0.1214 € *
Available: 780 pcs.
Total Price:
1.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1214 €
100 pcs.
0.1059 €
500 pcs.
0.0988 €
1000 pcs.
0.0916 €
5000 pcs.
0.0797 €
*incl. VAT plus shipping costs
Subject to prior sale

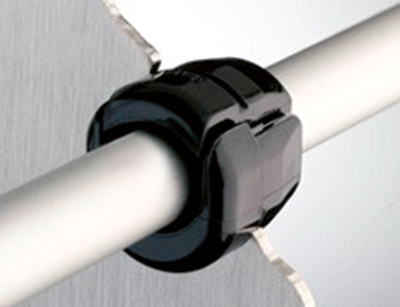

Cord grips with strain relief, type Heyman 1../2.
For round cables. The snap-in mounting bracket prevents tensile stress, pressure or torsion stress on the round power cords; Material: PA 6.6, UL 94 V-2, black. Operating temperatures: –35 to +105 °C. Certifications: UL, CSA.
For maximum wall thickness of 1.6 mm, type 2.

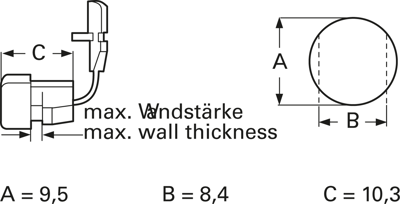

Technical attributes (type, cable diameter (CD), mounting hole diameter (A, B), overall length (C), color): 201004, CD 3.2 to 4.7 mm, A 9.5, B 8.4, C 10.3 mm, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| spanner size | 9.5 mm | |
| min. operating temperature | -35 °C | |
| Colour | black | |
| Material | PA | |
| min. clamping range | 3.2 mm | |
| max. clamping range | 4.8 mm | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
